FLAILY Hammer mowers
two swing disks
Hectare/Hour optimisation - thanks to a very quick cutting speed compared to traditional systems - clean cut of the grass, flexibility and an extensive range of cutting options are just some of the advantages of using Flaily with two swing disks.
The machine is available with two swing disks (with a 45 cm or 55 cm diameter), or with two sets of rakes.

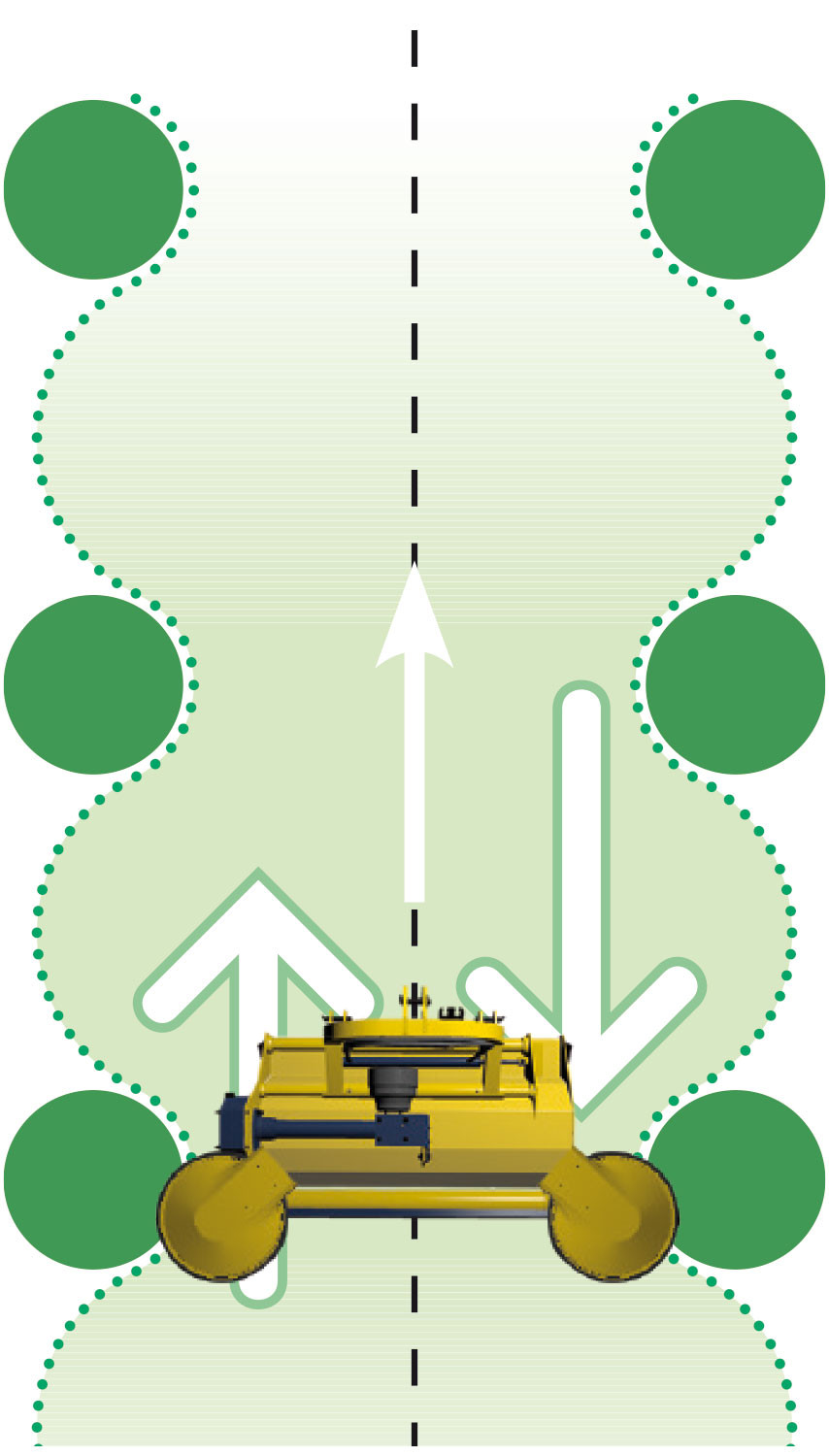

This machine offers all the advantages of a Flaily machine with rakes, with the additional benefit of allowing to cut grass by passing between rows only once, significantly reducing costs.
To work at their best even in particularly hot weather conditions, all Flaily machines with two swing disks come with a standard hydraulic oil cooling radiator. This ensures the oil maintains optimum temperature levels, avoiding the risk of it becoming too fluid and affecting the performance of the swing disks.
Distance between plants can be very limited, especially in vineyards. For this reason, Flaily machines can fit swing disks of different diameters: the 45 cm disk with star-shaped blade is ideal between narrow rows of plants, while the 55 cm disk can be used when the distance between plants reaches over 1 metre.
TECHNICAL DATA: SELECT THE MODEL
Working width with swing disk D.45 cm | cm 215 |
Working width with swing disk D.55 cm | cm 235 |
Working width with shoot-remover 42 cm | cm 210 |
Number of EM80 double sided blades | 44 |
Maximum diameter of light wood (standard machine) | 1 |
3 point linkage ISO | I/II |
Number of belts | 4 |
Diameter of height adjustable roller | cm 133 |
Side shift from middle of tractor | cm 103 |
HP | CV 18 |
Mechanic side shift | S |
Hydraulic side shift | O |
Angle gear positioned low | S |
Angle gear 540 revs/min-1 with freewheel | S |
Angle gear 1,000 revs/min-1 with freewheel | O |
Front version for front PTO 540/1.000 revs/min-1 | O |
Hydraulic system (tank, pump, max. valve, 3-way valve, filter) | S |
Hydraulic oil cooling radiator | S |
Swing disk with blades D.45/55 | O |
Rake (on request hydraulically height adjustable) | O |
Side runners adjustable in height | O |
Herbymulching: 100 lt herbicide tank with 12V pump | O |
Herbymulching: 200 lt herbicide tank with 12V pump | O |
Overall size - Length | cm 155 |
Weight (standard version) | kg 620 |
O=Optional - nd=Not available - S=Standard
Download pdf FL 1402
Working width with swing disk D.45 cm | cm 235 |
Working width with swing disk D.55 cm | cm 255 |
Working width with shoot-remover 42 cm | cm 230 |
Number of EM80 double sided blades | 52 |
Maximum diameter of light wood (standard machine) | 1 |
3 point linkage ISO | I/II |
Number of belts | 4 |
Diameter of height adjustable roller | cm 133 |
Side shift from middle of tractor | cm 176 |
HP | CV 20 |
Mechanic side shift | S |
Hydraulic side shift | O |
Angle gear positioned low | S |
Angle gear 540 revs/min-1 with freewheel | S |
Angle gear 1,000 revs/min-1 with freewheel | O |
Front version for front PTO 540/1.000 revs/min-1 | O |
Hydraulic system (tank, pump, max. valve, 3-way valve, filter) | S |
Hydraulic oil cooling radiator | S |
Swing disk with blades D.45/55 | O |
Rake (on request hydraulically height adjustable) | O |
Side runners adjustable in height | O |
Herbymulching: 100 lt herbicide tank with 12V pump | O |
Herbymulching: 200 lt herbicide tank with 12V pump | O |
Overall size - Length | cm 176 |
Weight (standard version) | kg 700 |
O=Optional - nd=Not available - S=Standard
Download pdf FL 1602
Working width with swing disk D.45 cm | cm 255 |
Working width with swing disk D.55 cm | cm 275 |
Working width with shoot-remover 42 cm | cm 250 |
Number of EM80 double sided blades | 60 |
Maximum diameter of light wood (standard machine) | 1 |
3 point linkage ISO | I/II |
Number of belts | 4 |
Diameter of height adjustable roller | cm 133 |
Side shift from middle of tractor | cm 196 |
HP | CV 25 |
Mechanic side shift | S |
Hydraulic side shift | O |
Angle gear positioned low | S |
Angle gear 540 revs/min-1 with freewheel | S |
Angle gear 1,000 revs/min-1 with freewheel | O |
Front version for front PTO 540/1.000 revs/min-1 | O |
Hydraulic system (tank, pump, max. valve, 3-way valve, filter) | S |
Hydraulic oil cooling radiator | S |
Swing disk with blades D.45/55 | O |
Rake (on request hydraulically height adjustable) | O |
Side runners adjustable in height | O |
Herbymulching: 100 lt herbicide tank with 12V pump | O |
Herbymulching: 200 lt herbicide tank with 12V pump | O |
Overall size - Length | cm 196 |
Weight (standard version) | kg 715 |
O=Optional - nd=Not available - S=Standard
Download pdf FL 1802
Working width with swing disk D.45 cm | cm 285 |
Working width with swing disk D.55 cm | cm 305 |
Working width with shoot-remover 42 cm | cm 280 |
Number of EM80 double sided blades | 68 |
Maximum diameter of light wood (standard machine) | 1 |
3 point linkage ISO | I/II |
Number of belts | 4 |
Diameter of height adjustable roller | cm 133 |
Side shift from middle of tractor | cm 217 |
HP | CV 30 |
Mechanic side shift | S |
Hydraulic side shift | O |
Angle gear positioned low | S |
Angle gear 540 revs/min-1 with freewheel | S |
Angle gear 1,000 revs/min-1 with freewheel | O |
Front version for front PTO 540/1.000 revs/min-1 | O |
Hydraulic system (tank, pump, max. valve, 3-way valve, filter) | S |
Hydraulic oil cooling radiator | S |
Swing disk with blades D.45/55 | O |
Rake (on request hydraulically height adjustable) | O |
Side runners adjustable in height | O |
Herbymulching: 100 lt herbicide tank with 12V pump | O |
Herbymulching: 200 lt herbicide tank with 12V pump | O |
Overall size - Length | cm 217 |
Weight (standard version) | kg 900 |
O=Optional - nd=Not available - S=Standard
