HF
FLAILY Hammer mowers
one swing disk

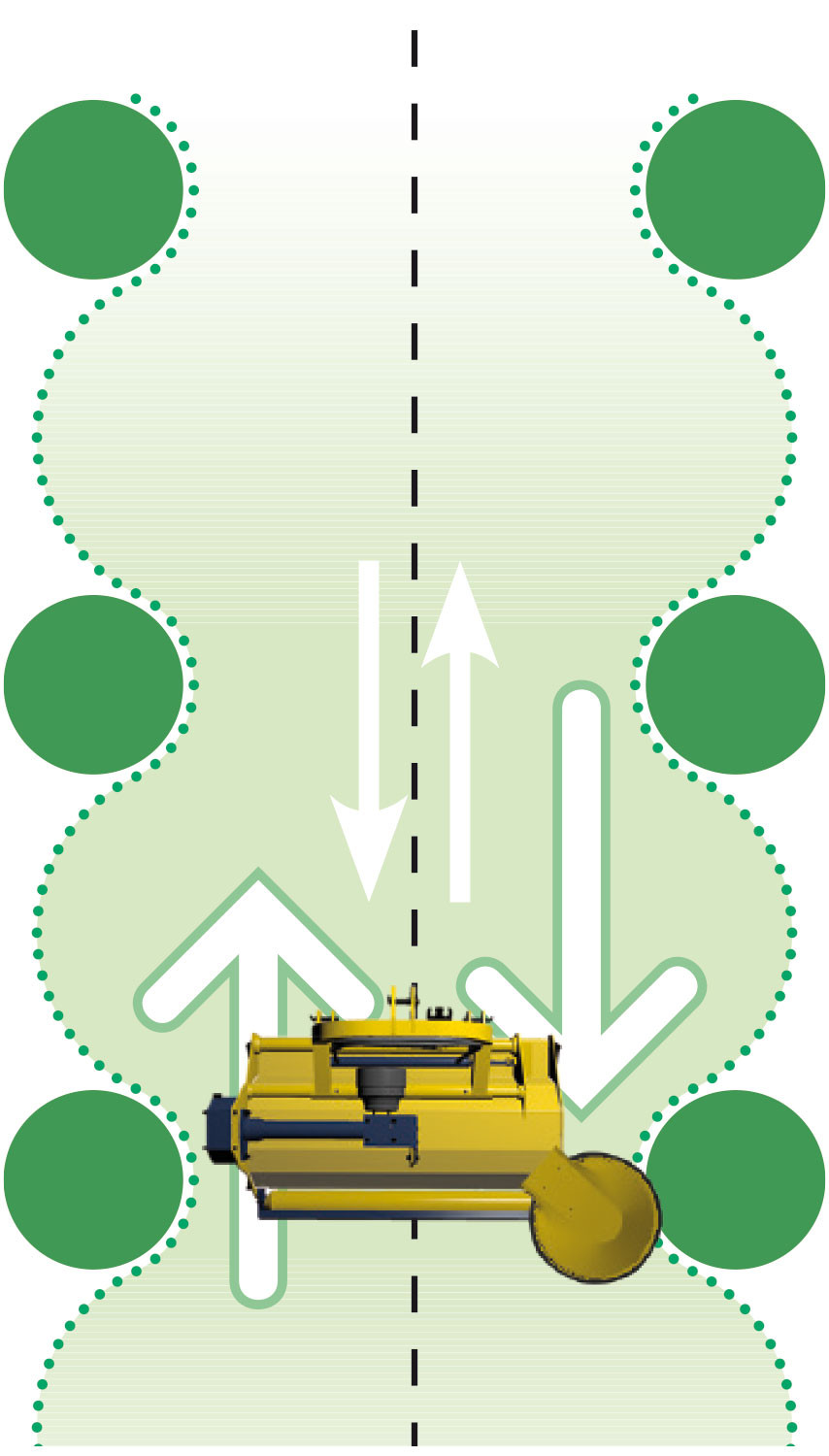

This machine can be used in different situations and meets a wide range of requirements. However, it is especially recommended for vineyards. The fact that the swing disk with blades, with a diameter of 45 cm or 55 cm, can be replaced with a rake, makes the Flaily machine with one swing disk the ideal solution to cut grass between rows as well as between one plant and the next. In particular, the rake ensures excellent results around plants, leaving no uncut grass and getting rid of root sprouts.
Compared to other cutting systems, the rake offers another great advantage that has a positive impact on costs: high driving speed.
The rake is fitted with a return spring that retracts if the rake hits an obstacle. The height can be adjusted and regulated with a screw or, on request, hydraulically. This makes sure the machine can be adapted easily and quickly to the work at hand.
The machine has proven effectiveness of this accessory on the field, demonstrating to be able to cut grass without damaging plants. The shaft’s revolutions, the type of string and other technical details make this machine suitable in every situation without the risk of damaging the fixtures on the ground (poles, etc.).
The option to control the rake rotation electronically makes it ideal even on
vineyards with young, reimplanted, vines.
TECHNICAL DATA: SELECT THE MODEL
Working width with swing disk D.45 cm | cm 155 |
Working width with swing disk D.55 cm | cm 165 |
Working width with shoot-remover 42 cm | cm 155 |
Number of EM80 double sided blades | 36 |
Maximum diameter of light wood (standard machine) | 1 |
3 point linkage ISO | I/II |
Number of belts | 3 |
Diameter of height adjustable roller | cm 133 |
Side shift from middle of tractor | cm 87 |
HP | CV 15 |
Hydraulic side shift | O |
Mechanic side shift | S |
Angle gear positioned low | S |
Angle gear 540 revs/min-1 with freewheel | S |
Angle gear 1,000 revs/min-1 with freewheel | n.d. |
Front version for front PTO 540/1.000 revs/min-1 | n.d. |
Hydraulic system (tank, pump, max. valve, 3-way valve, filter) | S |
Hydraulic oil cooling radiator | O |
Swing disk with blades D.45/55 | O |
Rake (on request hydraulically height adjustable) | O |
Side runners adjustable in height | O |
Herbymulching: 100 lt herbicide tank with 12V pump | O |
Herbymulching: 200 lt herbicide tank with 12V pump | n.d. |
Overall size - Length | cm 134 |
Weight (standard version) | kg 480 |
O=Optional - nd=Not available - S=Standard
Download pdf FL 1201
Working width with swing disk D.45 cm | cm 175 |
Working width with swing disk D.55 cm | cm 185 |
Working width with shoot-remover 42 cm | cm 175 |
Number of EM80 double sided blades | 44 |
Maximum diameter of light wood (standard machine) | 1 |
3 point linkage ISO | I/II |
Number of belts | 4 |
Diameter of height adjustable roller | cm 133 |
Side shift from middle of tractor | cm 103 |
HP | CV 18 |
Hydraulic side shift | O |
Mechanic side shift | S |
Angle gear positioned low | S |
Angle gear 540 revs/min-1 with freewheel | S |
Angle gear 1,000 revs/min-1 with freewheel | n.d. |
Front version for front PTO 540/1.000 revs/min-1 | n.d. |
Hydraulic system (tank, pump, max. valve, 3-way valve, filter) | S |
Hydraulic oil cooling radiator | O |
Swing disk with blades D.45/55 | O |
Rake (on request hydraulically height adjustable) | O |
Side runners adjustable in height | O |
Herbymulching: 100 lt herbicide tank with 12V pump | O |
Herbymulching: 200 lt herbicide tank with 12V pump | O |
Overall size - Length | cm 155 |
Weight (standard version) | kg 540 |
O=Optional - nd=Not available - S=Standard
Download pdf FL 1401
Working width with swing disk D.45 cm | cm 195 |
Working width with swing disk D.55 cm | cm 205 |
Working width with shoot-remover 42 cm | cm 195 |
Number of EM80 double sided blades | 52 |
Maximum diameter of light wood (standard machine) | 1 |
3 point linkage ISO | I/II |
Number of belts | 4 |
Diameter of height adjustable roller | cm 133 |
Side shift from middle of tractor | cm 176 |
HP | CV 20 |
Hydraulic side shift | O |
Mechanic side shift | S |
Angle gear positioned low | S |
Angle gear 540 revs/min-1 with freewheel | S |
Angle gear 1,000 revs/min-1 with freewheel | n.d. |
Front version for front PTO 540/1.000 revs/min-1 | n.d. |
Hydraulic system (tank, pump, max. valve, 3-way valve, filter) | S |
Hydraulic oil cooling radiator | O |
Swing disk with blades D.45/55 | O |
Rake (on request hydraulically height adjustable) | O |
Side runners adjustable in height | O |
Herbymulching: 100 lt herbicide tank with 12V pump | O |
Herbymulching: 200 lt herbicide tank with 12V pump | O |
Overall size - Length | cm 176 |
Weight (standard version) | kg 590 |
O=Optional - nd=Not available - S=Standard
Download pdf FL 1601
Working width with swing disk D.45 cm | cm 215 |
Working width with swing disk D.55 cm | cm 225 |
Working width with shoot-remover 42 cm | cm 215 |
Number of EM80 double sided blades | 60 |
Maximum diameter of light wood (standard machine) | 1 |
3 point linkage ISO | I/II |
Number of belts | 4 |
Diameter of height adjustable roller | cm 133 |
Side shift from middle of tractor | cm 196 |
HP | CV 25 |
Hydraulic side shift | O |
Mechanic side shift | S |
Angle gear positioned low | S |
Angle gear 540 revs/min-1 with freewheel | S |
Angle gear 1,000 revs/min-1 with freewheel | n.d. |
Front version for front PTO 540/1.000 revs/min-1 | n.d. |
Hydraulic system (tank, pump, max. valve, 3-way valve, filter) | S |
Hydraulic oil cooling radiator | O |
Swing disk with blades D.45/55 | O |
Rake (on request hydraulically height adjustable) | O |
Side runners adjustable in height | O |
Herbymulching: 100 lt herbicide tank with 12V pump | O |
Herbymulching: 200 lt herbicide tank with 12V pump | O |
Overall size - Length | cm 196 |
Weight (standard version) | kg 630 |
O=Optional - nd=Not available - S=Standard
Download pdf FL 1801
Working width with swing disk D.45 cm | cm 245 |
Working width with swing disk D.55 cm | cm 255 |
Working width with shoot-remover 42 cm | cm 245 |
Number of EM80 double sided blades | 68 |
Maximum diameter of light wood (standard machine) | 1 |
3 point linkage ISO | I/II |
Number of belts | 4 |
Diameter of height adjustable roller | cm 133 |
Side shift from middle of tractor | cm 217 |
HP | CV 30 |
Hydraulic side shift | O |
Mechanic side shift | S |
Angle gear positioned low | S |
Angle gear 540 revs/min-1 with freewheel | S |
Angle gear 1,000 revs/min-1 with freewheel | n.d. |
Front version for front PTO 540/1.000 revs/min-1 | n.d. |
Hydraulic system (tank, pump, max. valve, 3-way valve, filter) | S |
Hydraulic oil cooling radiator | O |
Swing disk with blades D.45/55 | O |
Rake (on request hydraulically height adjustable) | O |
Side runners adjustable in height | O |
Herbymulching: 100 lt herbicide tank with 12V pump | O |
Herbymulching: 200 lt herbicide tank with 12V pump | O |
Overall size - Length | cm 217 |
Weight (standard version) | kg 810 |
O=Optional - nd=Not available - S=Standard
