HC
Hammer mulching machines
with no swing disk

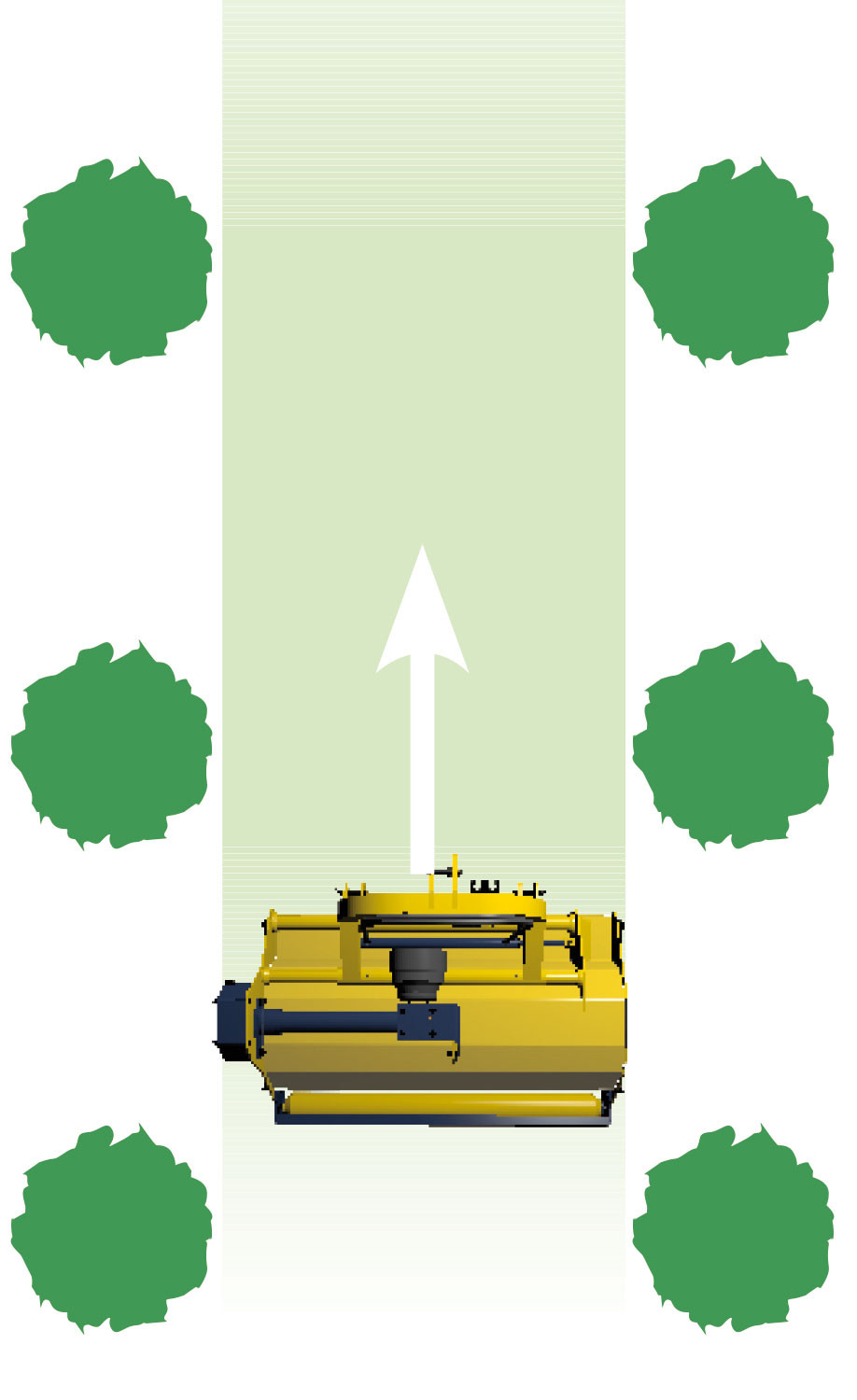

This is the traditional version of the Castor range; the machine every modern agricultural firm needs. Ideally suited for cutting grass between rows of trees and shredding pruning cuttings, it is available in different models and versions to suit all work needs.
To meet the multiple requirements of modern farming, we offer an extensive range of cutting widths. Castor is also available in a number of different versions:
Castor Standard front or rear version. The transmission with freewheel works with 3, 4 or 5 belts, depending on the model; the large blade-carrying rotor is electronically balanced.
Castor with low gear box. This model has the transmission positioned extra low; in this version the side box is mounted at an angle, to keep the machine low and stable. This characteristic is particularly important when the machine is used along narrow rows of trees or plants and where branches are very low.
Castor Agrifruit. The machine features a rear opening necessary when cutting particularly fibrous material; the opening is adjustable to allow an optimal offload of the cuttings and cut quickly.
Castor Komby front and rear three point linkage. This machine can be either pulled or pushed. The transmission has a double freewheel automatic inverter, which ensures the correct functioning of the machine on all tractors.
Castor Chianti designed for the most demanding jobs. The extra robust frame and the large blade carrying rotor ensure the machine can be used in the most demanding conditions, where a normal machine could not operate.
Castor machines can combine cutting and weeding; each model can be
equipped with a 100 I or 200 I herbicide tank, called Herbymulching.
TECHNICAL DATA: SELECT THE MODEL
| Working width | cm 115 |
| Number of hammers | 12 |
| Maximum cutting diameter | 5-8 (6-8) |
| 3 point linkage ISO | I/II |
| Number of belts | 3 |
| Diameter of height adjustable roller | cm 159 |
| Side shift from middle of tractor | cm 71 |
| HP | CV 25 |
| Mechanic side shift | S |
| Hydraulic side shift | O |
| Angle gear positioned low with freewheel | O |
| Angle gear 540 revs/min-1 with freewheel | S |
| Angle gear 1,000 revs/min-1 with freewheel | O |
| Rear rake | O |
| Side runners adjustable in height | O |
| Herbymulching: 100 lt herbicide tank with 12V pump | O |
| Herbymulching: 200 lt herbicide tank with 12V pump | n.d. |
| Double sided reversible blades, series Y | O |
| Front version for front PTO 540/1.000 revs/min-1 | O |
| Komby: version for front and rear PTO 540/1.000 revs/min with gearbox with automatic inverter and double freewheel for reversible tractors | O |
| Agrifruit: version with opening on the rear | n.d. |
| hammer weight | kg 1,5 |
| Overall size - Length with closed swing disk | cm 130 |
| Weight (standard version) | kg 420 |
O=Optional - nd=Not available - S=Standard
Download pdf CA 11
| Working width | cm 115 |
| Number of hammers | 12 |
| Maximum cutting diameter | 5-8 (6-8) |
| 3 point linkage ISO | I/II |
| Number of belts | 3 |
| Diameter of height adjustable roller | cm 159 |
| Side shift from middle of tractor | cm 71 |
| HP | CV 25 |
| Mechanic side shift | S |
| Hydraulic side shift | O |
| Angle gear positioned low with freewheel | O |
| Angle gear 540 revs/min-1 with freewheel | S |
| Angle gear 1,000 revs/min-1 with freewheel | O |
| Rear rake | O |
| Side runners adjustable in height | O |
| Herbymulching: 100 lt herbicide tank with 12V pump | O |
| Herbymulching: 200 lt herbicide tank with 12V pump | n.d. |
| Double sided reversible blades, series Y | O |
| Front version for front PTO 540/1.000 revs/min-1 | O |
| Komby: version for front and rear PTO 540/1.000 revs/min with gearbox with automatic inverter and double freewheel for reversible tractors | O |
| Agrifruit: version with opening on the rear | n.d. |
| hammer weight | kg 1,85 |
| Overall size - Length with closed swing disk | cm 130 |
| Weight (standard version) | kg 490 |
O=Optional - nd=Not available - S=Standard
Download pdf CACH 11
| Working width | cm 125 |
| Number of hammers | 12 |
| Maximum cutting diameter | 5-8 (6-8) |
| 3 point linkage ISO | I/II |
| Number of belts | 3 |
| Diameter of height adjustable roller | cm 159 |
| Side shift from middle of tractor | cm 85 |
| HP | CV 25 |
| Mechanic side shift | S |
| Hydraulic side shift | O |
| Angle gear positioned low with freewheel | O |
| Angle gear 540 revs/min-1 with freewheel | S |
| Angle gear 1,000 revs/min-1 with freewheel | O |
| Rear rake | O |
| Side runners adjustable in height | O |
| Herbymulching: 100 lt herbicide tank with 12V pump | O |
| Herbymulching: 200 lt herbicide tank with 12V pump | n.d. |
| Double sided reversible blades, series Y | O |
| Front version for front PTO 540/1.000 revs/min-1 | O |
| Komby: version for front and rear PTO 540/1.000 revs/min with gearbox with automatic inverter and double freewheel for reversible tractors | O |
| Agrifruit: version with opening on the rear | O |
| hammer weight | kg 1,5 |
| Overall size - Length with closed swing disk | cm 143 |
| Weight (standard version) | kg 480 |
O=Optional - nd=Not available - S=Standard
Download pdf CA 13
| Working width | cm 125 |
| Number of hammers | 12 |
| Maximum cutting diameter | 5-8 (6-8) |
| 3 point linkage ISO | I/II |
| Number of belts | 3 |
| Diameter of height adjustable roller | cm 159 |
| Side shift from middle of tractor | cm 85 |
| HP | CV 25 |
| Mechanic side shift | S |
| Hydraulic side shift | O |
| Angle gear positioned low with freewheel | O |
| Angle gear 540 revs/min-1 with freewheel | S |
| Angle gear 1,000 revs/min-1 with freewheel | O |
| Rear rake | O |
| Side runners adjustable in height | O |
| Herbymulching: 100 lt herbicide tank with 12V pump | O |
| Herbymulching: 200 lt herbicide tank with 12V pump | n.d. |
| Double sided reversible blades, series Y | O |
| Front version for front PTO 540/1.000 revs/min-1 | O |
| Komby: version for front and rear PTO 540/1.000 revs/min with gearbox with automatic inverter and double freewheel for reversible tractors | O |
| Agrifruit: version with opening on the rear | O |
| hammer weight | kg 1,85 |
| Overall size - Length with closed swing disk | cm 143 |
| Weight (standard version) | kg 530 |
O=Optional - nd=Not available - S=Standard
Download pdf CACH 13
| Working width | cm 140 |
| Number of hammers | 16 |
| Maximum cutting diameter | 5-8 (6-8) |
| 3 point linkage ISO | I/II |
| Number of belts | 3 |
| Diameter of height adjustable roller | cm 159 |
| Side shift from middle of tractor | cm 102 |
| HP | CV 35 |
| Mechanic side shift | S |
| Hydraulic side shift | O |
| Angle gear positioned low with freewheel | O |
| Angle gear 540 revs/min-1 with freewheel | S |
| Angle gear 1,000 revs/min-1 with freewheel | O |
| Rear rake | O |
| Side runners adjustable in height | O |
| Herbymulching: 100 lt herbicide tank with 12V pump | O |
| Herbymulching: 200 lt herbicide tank with 12V pump | n.d. |
| Double sided reversible blades, series Y | O |
| Front version for front PTO 540/1.000 revs/min-1 | O |
| Komby: version for front and rear PTO 540/1.000 revs/min with gearbox with automatic inverter and double freewheel for reversible tractors | O |
| Agrifruit: version with opening on the rear | O |
| hammer weight | kg 1,5 |
| Overall size - Length with closed swing disk | cm 158 |
| Weight (standard version) | kg 500 |
O=Optional - nd=Not available - S=Standard
Download pdf CA 14
| Working width | cm 140 |
| Number of hammers | 16 |
| Maximum cutting diameter | 5-8 (6-8) |
| 3 point linkage ISO | I/II |
| Number of belts | 3 |
| Diameter of height adjustable roller | cm 159 |
| Side shift from middle of tractor | cm 102 |
| HP | CV 35 |
| Mechanic side shift | S |
| Hydraulic side shift | O |
| Angle gear positioned low with freewheel | O |
| Angle gear 540 revs/min-1 with freewheel | S |
| Angle gear 1,000 revs/min-1 with freewheel | O |
| Rear rake | O |
| Side runners adjustable in height | O |
| Herbymulching: 100 lt herbicide tank with 12V pump | O |
| Herbymulching: 200 lt herbicide tank with 12V pump | n.d. |
| Double sided reversible blades, series Y | O |
| Front version for front PTO 540/1.000 revs/min-1 | O |
| Komby: version for front and rear PTO 540/1.000 revs/min with gearbox with automatic inverter and double freewheel for reversible tractors | O |
| Agrifruit: version with opening on the rear | O |
| hammer weight | kg 1,85 |
| Overall size - Length with closed swing disk | cm 158 |
| Weight (standard version) | kg 540 |
O=Optional - nd=Not available - S=Standard
Download pdf CACH 14
| Working width | cm 150 |
| Number of hammers | 16 |
| Maximum cutting diameter | 5-8 (6-8) |
| 3 point linkage ISO | I/II |
| Number of belts | 3 |
| Diameter of height adjustable roller | cm 159 |
| Side shift from middle of tractor | cm 110 |
| HP | CV 35 |
| Mechanic side shift | S |
| Hydraulic side shift | O |
| Angle gear positioned low with freewheel | O |
| Angle gear 540 revs/min-1 with freewheel | S |
| Angle gear 1,000 revs/min-1 with freewheel | O |
| Rear rake | O |
| Side runners adjustable in height | O |
| Herbymulching: 100 lt herbicide tank with 12V pump | O |
| Herbymulching: 200 lt herbicide tank with 12V pump | O |
| Double sided reversible blades, series Y | O |
| Front version for front PTO 540/1.000 revs/min-1 | O |
| Komby: version for front and rear PTO 540/1.000 revs/min with gearbox with automatic inverter and double freewheel for reversible tractors | O |
| Agrifruit: version with opening on the rear | O |
| Peso mazza | kg 1,5 |
| Overall size - Length with closed swing disk | cm 169 |
| Weight (standard version) | kg 520 |
O=Optional - nd=Not available - S=Standard
Download pdf hammer weight
| Working width | cm 150 |
| Number of hammers | 16 |
| Maximum cutting diameter | 5-8 (6-8) |
| 3 point linkage ISO | I/II |
| Number of belts | 3 |
| Diameter of height adjustable roller | cm 159 |
| Side shift from middle of tractor | cm 110 |
| HP | CV 35 |
| Mechanic side shift | S |
| Hydraulic side shift | O |
| Angle gear positioned low with freewheel | O |
| Angle gear 540 revs/min-1 with freewheel | S |
| Angle gear 1,000 revs/min-1 with freewheel | O |
| Rear rake | O |
| Side runners adjustable in height | O |
| Herbymulching: 100 lt herbicide tank with 12V pump | O |
| Herbymulching: 200 lt herbicide tank with 12V pump | O |
| Double sided reversible blades, series Y | O |
| Front version for front PTO 540/1.000 revs/min-1 | O |
| Komby: version for front and rear PTO 540/1.000 revs/min with gearbox with automatic inverter and double freewheel for reversible tractors | O |
| Agrifruit: version with opening on the rear | O |
| Peso mazza | kg 1,85 |
| Overall size - Length with closed swing disk | cm 169 |
| Weight (standard version) | kg 580 |
O=Optional - nd=Not available - S=Standard
Download pdf hammer weight
| Working width | cm 160 |
| Number of hammers | 20 |
| Maximum cutting diameter | 5-8 (6-8) |
| 3 point linkage ISO | I/II |
| Number of belts | 4 |
| Diameter of height adjustable roller | cm 159 |
| Side shift from middle of tractor | cm 115 |
| HP | CV 40 |
| Mechanic side shift | S |
| Hydraulic side shift | O |
| Angle gear positioned low with freewheel | O |
| Angle gear 540 revs/min-1 with freewheel | S |
| Angle gear 1,000 revs/min-1 with freewheel | O |
| Rear rake | O |
| Side runners adjustable in height | O |
| Herbymulching: 100 lt herbicide tank with 12V pump | O |
| Herbymulching: 200 lt herbicide tank with 12V pump | O |
| Double sided reversible blades, series Y | O |
| Front version for front PTO 540/1.000 revs/min-1 | O |
| Komby: version for front and rear PTO 540/1.000 revs/min with gearbox with automatic inverter and double freewheel for reversible tractors | O |
| Agrifruit: version with opening on the rear | O |
| hammer weight | kg 1,5 |
| Overall size - Length with closed swing disk | cm 178 |
| Weight (standard version) | kg 540 |
O=Optional - nd=Not available - S=Standard
Download pdf CA 16
| Working width | cm 160 |
| Number of hammers | 20 |
| Maximum cutting diameter | 5-8 (6-8) |
| 3 point linkage ISO | I/II |
| Number of belts | 4 |
| Diameter of height adjustable roller | cm 159 |
| Side shift from middle of tractor | cm 115 |
| HP | CV 40 |
| Mechanic side shift | S |
| Hydraulic side shift | O |
| Angle gear positioned low with freewheel | O |
| Angle gear 540 revs/min-1 with freewheel | S |
| Angle gear 1,000 revs/min-1 with freewheel | O |
| Rear rake | O |
| Side runners adjustable in height | O |
| Herbymulching: 100 lt herbicide tank with 12V pump | O |
| Herbymulching: 200 lt herbicide tank with 12V pump | O |
| Double sided reversible blades, series Y | O |
| Front version for front PTO 540/1.000 revs/min-1 | O |
| Komby: version for front and rear PTO 540/1.000 revs/min with gearbox with automatic inverter and double freewheel for reversible tractors | O |
| Agrifruit: version with opening on the rear | O |
| hammer weight | kg 1,85 |
| Overall size - Length with closed swing disk | cm 178 |
| Weight (standard version) | kg 600 |
O=Optional - nd=Not available - S=Standard
Download pdf CACH 16
| Working width | cm 175 |
| Number of hammers | 20 |
| Maximum cutting diameter | 5-8 (6-8) |
| 3 point linkage ISO | I/II |
| Number of belts | 4 |
| Diameter of height adjustable roller | cm 159 |
| Side shift from middle of tractor | cm 120 |
| HP | CV 40 |
| Mechanic side shift | S |
| Hydraulic side shift | O |
| Angle gear positioned low with freewheel | O |
| Angle gear 540 revs/min-1 with freewheel | S |
| Angle gear 1,000 revs/min-1 with freewheel | O |
| Rear rake | O |
| Side runners adjustable in height | O |
| Herbymulching: 100 lt herbicide tank with 12V pump | O |
| Herbymulching: 200 lt herbicide tank with 12V pump | O |
| Double sided reversible blades, series Y | O |
| Front version for front PTO 540/1.000 revs/min-1 | O |
| Komby: version for front and rear PTO 540/1.000 revs/min with gearbox with automatic inverter and double freewheel for reversible tractors | O |
| Agrifruit: version with opening on the rear | O |
| hammer weight | kg 1,5 |
| Overall size - Length with closed swing disk | cm 193 |
| Weight (standard version) | kg 580 |
O=Optional - nd=Not available - S=Standard
Download pdf CA 18
| Working width | cm 175 |
| Number of hammers | 20 |
| Maximum cutting diameter | 5-8 (6-8) |
| 3 point linkage ISO | I/II |
| Number of belts | 4 |
| Diameter of height adjustable roller | cm 159 |
| Side shift from middle of tractor | cm 120 |
| HP | CV 40 |
| Mechanic side shift | S |
| Hydraulic side shift | O |
| Angle gear positioned low with freewheel | O |
| Angle gear 540 revs/min-1 with freewheel | S |
| Angle gear 1,000 revs/min-1 with freewheel | O |
| Rear rake | O |
| Side runners adjustable in height | O |
| Herbymulching: 100 lt herbicide tank with 12V pump | O |
| Herbymulching: 200 lt herbicide tank with 12V pump | O |
| Double sided reversible blades, series Y | O |
| Front version for front PTO 540/1.000 revs/min-1 | O |
| Komby: version for front and rear PTO 540/1.000 revs/min with gearbox with automatic inverter and double freewheel for reversible tractors | O |
| Agrifruit: version with opening on the rear | O |
| hammer weight | kg 1,85 |
| Overall size - Length with closed swing disk | cm 193 |
| Weight (standard version) | kg 640 |
O=Optional - nd=Not available - S=Standard
Download pdf CACH 18
| Working width | cm 200 |
| Number of hammers | 24 |
| Maximum cutting diameter | 5-8 (6-8) |
| 3 point linkage ISO | I/II |
| Number of belts | 4 |
| Diameter of height adjustable roller | cm 159 |
| Side shift from middle of tractor | cm 135 |
| HP | CV 45 |
| Mechanic side shift | S |
| Hydraulic side shift | O |
| Angle gear positioned low with freewheel | O |
| Angle gear 540 revs/min-1 with freewheel | S |
| Angle gear 1,000 revs/min-1 with freewheel | O |
| Rear rake | O |
| Side runners adjustable in height | O |
| Herbymulching: 100 lt herbicide tank with 12V pump | O |
| Herbymulching: 200 lt herbicide tank with 12V pump | O |
| Double sided reversible blades, series Y | O |
| Front version for front PTO 540/1.000 revs/min-1 | O |
| Komby: version for front and rear PTO 540/1.000 revs/min with gearbox with automatic inverter and double freewheel for reversible tractors | O |
| Agrifruit: version with opening on the rear | O |
| hammer weight | kg 1,5 |
| Overall size - Length with closed swing disk | cm 222 |
| Weight (standard version) | kg 620 |
O=Optional - nd=Not available - S=Standard
Download pdf CA 20
| Working width | cm 200 |
| Number of hammers | 24 |
| Maximum cutting diameter | 5-8 (6-8) |
| 3 point linkage ISO | I/II |
| Number of belts | 4 |
| Diameter of height adjustable roller | cm 159 |
| Side shift from middle of tractor | cm 135 |
| HP | CV 45 |
| Mechanic side shift | S |
| Hydraulic side shift | O |
| Angle gear positioned low with freewheel | O |
| Angle gear 540 revs/min-1 with freewheel | S |
| Angle gear 1,000 revs/min-1 with freewheel | O |
| Rear rake | O |
| Side runners adjustable in height | O |
| Herbymulching: 100 lt herbicide tank with 12V pump | O |
| Herbymulching: 200 lt herbicide tank with 12V pump | O |
| Double sided reversible blades, series Y | O |
| Front version for front PTO 540/1.000 revs/min-1 | O |
| Komby: version for front and rear PTO 540/1.000 revs/min with gearbox with automatic inverter and double freewheel for reversible tractors | O |
| Agrifruit: version with opening on the rear | O |
| hammer weight | kg 1,85 |
| Overall size - Length with closed swing disk | cm 222 |
| Weight (standard version) | kg 680 |
O=Optional - nd=Not available - S=Standard
Download pdf CACH 20
| Working width | cm 220 |
| Number of hammers | 24 |
| Maximum cutting diameter | 5-8 (6-8) |
| 3 point linkage ISO | I/II |
| Number of belts | 5 |
| Diameter of height adjustable roller | cm 159 |
| Side shift from middle of tractor | cm 152 |
| HP | CV 50 |
| Mechanic side shift | S |
| Hydraulic side shift | O |
| Angle gear positioned low with freewheel | O |
| Angle gear 540 revs/min-1 with freewheel | S |
| Angle gear 1,000 revs/min-1 with freewheel | O |
| Rear rake | O |
| Side runners adjustable in height | O |
| Herbymulching: 100 lt herbicide tank with 12V pump | O |
| Herbymulching: 200 lt herbicide tank with 12V pump | O |
| Double sided reversible blades, series Y | O |
| Front version for front PTO 540/1.000 revs/min-1 | O |
| Komby: version for front and rear PTO 540/1.000 revs/min with gearbox with automatic inverter and double freewheel for reversible tractors | O |
| Agrifruit: version with opening on the rear | O |
| hammer weight | kg 1,5 |
| Overall size - Length with closed swing disk | cm 242 |
| Weight (standard version) | kg 675 |
O=Optional - nd=Not available - S=Standard
Download pdf CA 22
| Working width | cm 220 |
| Number of hammers | 24 |
| Maximum cutting diameter | 5-8 (6-8) |
| 3 point linkage ISO | I/II |
| Number of belts | 5 |
| Diameter of height adjustable roller | cm 159 |
| Side shift from middle of tractor | cm 152 |
| HP | CV 50 |
| Mechanic side shift | S |
| Hydraulic side shift | O |
| Angle gear positioned low with freewheel | O |
| Angle gear 540 revs/min-1 with freewheel | S |
| Angle gear 1,000 revs/min-1 with freewheel | O |
| Rear rake | O |
| Side runners adjustable in height | O |
| Herbymulching: 100 lt herbicide tank with 12V pump | O |
| Herbymulching: 200 lt herbicide tank with 12V pump | O |
| Double sided reversible blades, series Y | O |
| Front version for front PTO 540/1.000 revs/min-1 | O |
| Komby: version for front and rear PTO 540/1.000 revs/min with gearbox with automatic inverter and double freewheel for reversible tractors | O |
| Agrifruit: version with opening on the rear | O |
| hammer weight | kg 1,85 |
| Overall size - Length with closed swing disk | cm 242 |
| Weight (standard version) | kg 730 |
O=Optional - nd=Not available - S=Standard
