HC
Hammer mulching machines
with two swing disks

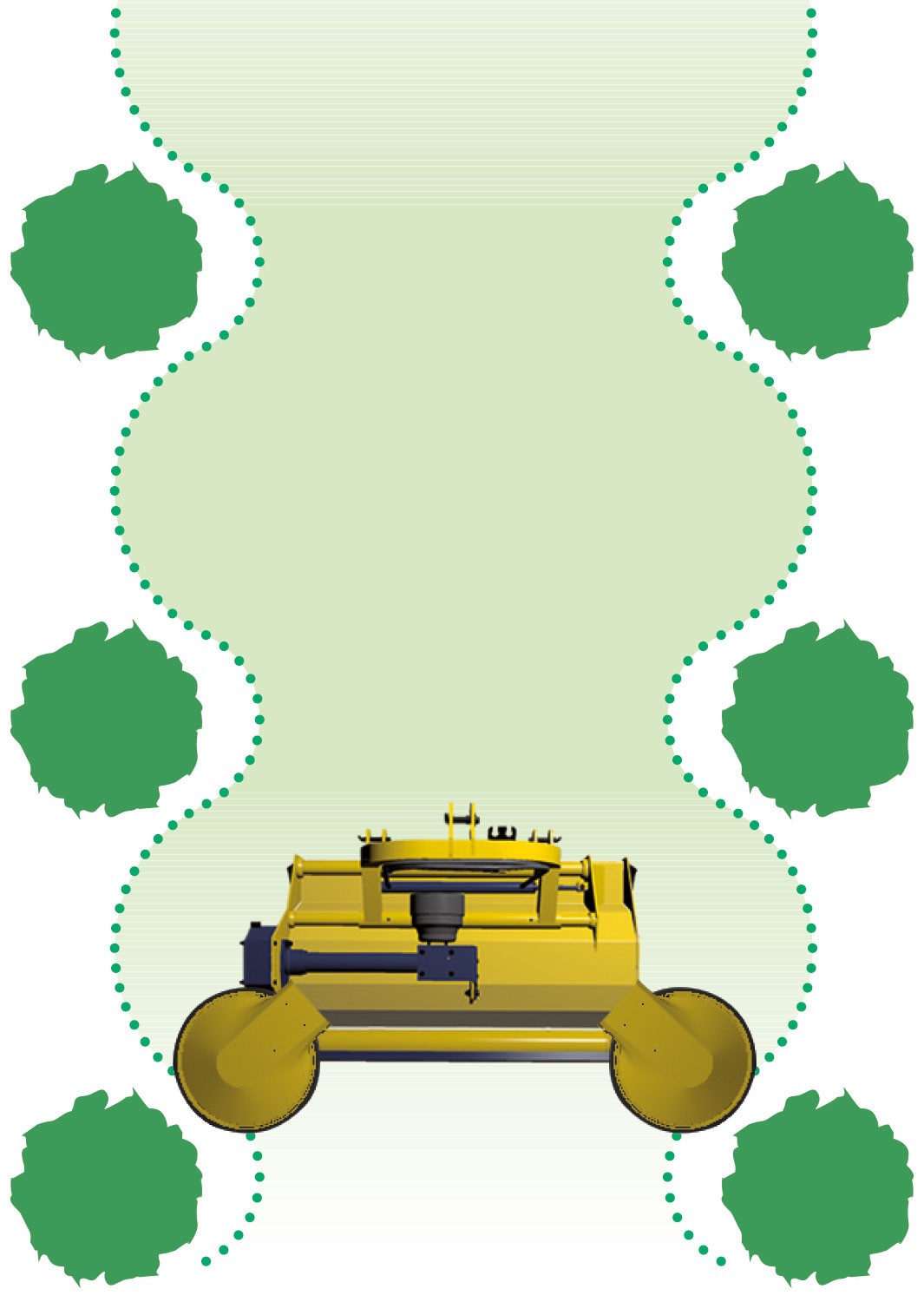

The Castor with two swing disks is the flagship of the range. This model is ideally suited to cutting between rows of trees or plants in one single passage, with significant savings in terms of hectare/hour and fuel consumption. The different diameter swing disks and the option to replace the blades with two rakes, make this machine ideal for firms that have varying widths between the rows of trees, plants, etc.
Hermes’s expertise in producing machines with swing disks is expressed at its best in the Castor hammer mulching machine with two swing disks. Thanks to the two swinging disks, interchangeable with rakes, the ground can be cleared by passing just once between the rows of trees, plants or vines. These machines are essential for agricultural firms who wish to reduce their impact on the environment, by getting rid of grass without use of chemicals.
Our Castor machines with two swing disks are very flexible and adaptable, as the two swing disks allow for a variable swath. In the event of hitting an obstacle, the spring return, featured in all our machines, avoids damage to the fixtures on the ground (poles, etc.) and to the machine. True to our mission to make strong, professional machines and to ensure they can work throughout the day even in hot weather conditions, Castor machines with two swing disks come with a standard oil cooling radiator.
Castor machines with two swing disks are modern machines created to satisfy all needs of today’s farming.
Castor Chianti designed for the most demanding jobs. The extra robust frame and the large blade carrying rotor ensure the machine can be used in the most demanding conditions, where a normal machine could not operate.
TECHNICAL DATA: SELECT THE MODEL
| Working width with swing disk D.45 cm | cm 220 |
| Working width with swing disk D.55 cm | cm 240 |
| Working width with shoot-remover 42 cm | cm 215 |
| Number of hammers | 16 |
| Number of blades | 2 |
| Maximum cutting diameter (standard machine) | 5-8 (6-8) |
| 3 point linkage ISO | I/II |
| Number of belts | 3 |
| Diameter of height adjustable roller | cm 159 |
| Side shift from middle of tractor with swing disk D.45 cm | cm 142 |
| Side shift from middle of tractor with swing disk D.55 cm | cm 152 |
| HP | CV 35 |
| Mechanic side shift | S |
| Hydraulic side shift | O |
| Hydraulic system (tank, pump, max. valve, 3-way valve, filter) | S |
| Hydraulic oil cooling radiator | S |
| Swing disk with blades Ø 45/55 cm | O |
| Rake | O |
| Angle gear positioned low with freewheel | O |
| Angle gear 540 revs/min-1 with freewheel | S |
| Angle gear 1,000 revs/min-1 with freewheel | O |
| Rear rake | n.d. |
| Side runners adjustable in height | O |
| Herbymulching: 100 lt herbicide tank with 12V pump | O |
| Herbymulching: 200 lt herbicide tank with 12V pump | n.d. |
| Double sided reversible blades, series Y | O |
| Front version for front PTO 540/1.000 revs/min-1 | n.d. |
| Komby: version for front and rear PTO 540/1.000 revs/min with gearbox with automatic inverter and double freewheel for reversible tractors | n.d. |
| Agrifruit: version with opening on the rear | n.d. |
| Peso mazza | kg 1,5 |
| Overall size - Length with closed swing disk | cm 158 |
| Weight (standard version) | kg 670 |
O=Optional - nd=Not available - S=Standard
Download pdf CA 142
| Working width with swing disk D.45 cm | cm 220 |
| Working width with swing disk D.55 cm | cm 240 |
| Working width with shoot-remover 42 cm | cm 215 |
| Number of hammers | 16 |
| Number of blades | 2 |
| Maximum cutting diameter (standard machine) | 5-8 (6-8) |
| 3 point linkage ISO | I/II |
| Number of belts | 3 |
| Diameter of height adjustable roller | cm 159 |
| Side shift from middle of tractor with swing disk D.45 cm | cm 142 |
| Side shift from middle of tractor with swing disk D.55 cm | cm 152 |
| HP | CV 35 |
| Mechanic side shift | S |
| Hydraulic side shift | O |
| Hydraulic system (tank, pump, max. valve, 3-way valve, filter) | S |
| Hydraulic oil cooling radiator | S |
| Swing disk with blades Ø 45/55 cm | O |
| Rake | O |
| Angle gear positioned low with freewheel | O |
| Angle gear 540 revs/min-1 with freewheel | S |
| Angle gear 1,000 revs/min-1 with freewheel | O |
| Rear rake | n.d. |
| Side runners adjustable in height | O |
| Herbymulching: 100 lt herbicide tank with 12V pump | O |
| Herbymulching: 200 lt herbicide tank with 12V pump | n.d. |
| Double sided reversible blades, series Y | O |
| Front version for front PTO 540/1.000 revs/min-1 | n.d. |
| Komby: version for front and rear PTO 540/1.000 revs/min with gearbox with automatic inverter and double freewheel for reversible tractors | n.d. |
| Agrifruit: version with opening on the rear | n.d. |
| Peso mazza | kg 1,85 |
| Overall size - Length with closed swing disk | cm 158 |
| Weight (standard version) | kg 700 |
O=Optional - nd=Not available - S=Standard
Download pdf CACH 142
| Working width with swing disk D.45 cm | cm 230 |
| Working width with swing disk D.55 cm | cm 240 |
| Working width with shoot-remover 42 cm | cm 225 |
| Number of hammers | 16 |
| Number of blades | 2 |
| Maximum cutting diameter (standard machine) | 5-8 (6-8) |
| 3 point linkage ISO | I/II |
| Number of belts | 3 |
| Diameter of height adjustable roller | cm 159 |
| Side shift from middle of tractor with swing disk D.45 cm | cm 150 |
| Side shift from middle of tractor with swing disk D.55 cm | cm 160 |
| HP | CV 35 |
| Mechanic side shift | S |
| Hydraulic side shift | O |
| Hydraulic system (tank, pump, max. valve, 3-way valve, filter) | S |
| Hydraulic oil cooling radiator | S |
| Swing disk with blades Ø 45/55 cm | O |
| Rake | O |
| Angle gear positioned low with freewheel | O |
| Angle gear 540 revs/min-1 with freewheel | S |
| Angle gear 1,000 revs/min-1 with freewheel | O |
| Rear rake | n.d. |
| Side runners adjustable in height | O |
| Herbymulching: 100 lt herbicide tank with 12V pump | O |
| Herbymulching: 200 lt herbicide tank with 12V pump | O |
| Double sided reversible blades, series Y | O |
| Front version for front PTO 540/1.000 revs/min-1 | n.d. |
| Komby: version for front and rear PTO 540/1.000 revs/min with gearbox with automatic inverter and double freewheel for reversible tractors | n.d. |
| Agrifruit: version with opening on the rear | n.d. |
| Peso mazza | kg 1,5 |
| Overall size - Length with closed swing disk | cm 169 |
| Weight (standard version) | kg 750 |
O=Optional - nd=Not available - S=Standard
Download pdf CA 152
| Working width with swing disk D.45 cm | cm 230 |
| Working width with swing disk D.55 cm | cm 240 |
| Working width with shoot-remover 42 cm | cm 225 |
| Number of hammers | 16 |
| Number of blades | 2 |
| Maximum cutting diameter (standard machine) | 5-8 (6-8) |
| 3 point linkage ISO | I/II |
| Number of belts | 3 |
| Diameter of height adjustable roller | cm 159 |
| Side shift from middle of tractor with swing disk D.45 cm | cm 150 |
| Side shift from middle of tractor with swing disk D.55 cm | cm 160 |
| HP | CV 35 |
| Mechanic side shift | S |
| Hydraulic side shift | O |
| Hydraulic system (tank, pump, max. valve, 3-way valve, filter) | S |
| Hydraulic oil cooling radiator | S |
| Swing disk with blades Ø 45/55 cm | O |
| Rake | O |
| Angle gear positioned low with freewheel | O |
| Angle gear 540 revs/min-1 with freewheel | S |
| Angle gear 1,000 revs/min-1 with freewheel | O |
| Rear rake | n.d. |
| Side runners adjustable in height | O |
| Herbymulching: 100 lt herbicide tank with 12V pump | O |
| Herbymulching: 200 lt herbicide tank with 12V pump | O |
| Double sided reversible blades, series Y | O |
| Front version for front PTO 540/1.000 revs/min-1 | n.d. |
| Komby: version for front and rear PTO 540/1.000 revs/min with gearbox with automatic inverter and double freewheel for reversible tractors | n.d. |
| Agrifruit: version with opening on the rear | n.d. |
| Peso mazza | kg 1,85 |
| Overall size - Length with closed swing disk | cm 169 |
| Weight (standard version) | kg 780 |
O=Optional - nd=Not available - S=Standard
Download pdf CACH 152
| Working width with swing disk D.45 cm | cm 240 |
| Working width with swing disk D.55 cm | cm 260 |
| Working width with shoot-remover 42 cm | cm 235 |
| Number of hammers | 20 |
| Number of blades | 2 |
| Maximum cutting diameter (standard machine) | 5-8 (6-8) |
| 3 point linkage ISO | I/II |
| Number of belts | 4 |
| Diameter of height adjustable roller | cm 159 |
| Side shift from middle of tractor with swing disk D.45 cm | cm 163 |
| Side shift from middle of tractor with swing disk D.55 cm | cm 173 |
| HP | CV 40 |
| Mechanic side shift | S |
| Hydraulic side shift | O |
| Hydraulic system (tank, pump, max. valve, 3-way valve, filter) | S |
| Hydraulic oil cooling radiator | S |
| Swing disk with blades Ø 45/55 cm | O |
| Rake | O |
| Angle gear positioned low with freewheel | O |
| Angle gear 540 revs/min-1 with freewheel | S |
| Angle gear 1,000 revs/min-1 with freewheel | O |
| Rear rake | n.d. |
| Side runners adjustable in height | O |
| Herbymulching: 100 lt herbicide tank with 12V pump | O |
| Herbymulching: 200 lt herbicide tank with 12V pump | O |
| Double sided reversible blades, series Y | O |
| Front version for front PTO 540/1.000 revs/min-1 | n.d. |
| Komby: version for front and rear PTO 540/1.000 revs/min with gearbox with automatic inverter and double freewheel for reversible tractors | n.d. |
| Agrifruit: version with opening on the rear | n.d. |
| Peso mazza | kg 1,5 |
| Overall size - Length with closed swing disk | cm 178 |
| Weight (standard version) | kg 810 |
O=Optional - nd=Not available - S=Standard
Download pdf CA 162
| Working width with swing disk D.45 cm | cm 240 |
| Working width with swing disk D.55 cm | cm 260 |
| Working width with shoot-remover 42 cm | cm 235 |
| Number of hammers | 20 |
| Number of blades | 2 |
| Maximum cutting diameter (standard machine) | 5-8 (6-8) |
| 3 point linkage ISO | I/II |
| Number of belts | 4 |
| Diameter of height adjustable roller | cm 159 |
| Side shift from middle of tractor with swing disk D.45 cm | cm 163 |
| Side shift from middle of tractor with swing disk D.55 cm | cm 173 |
| HP | CV 40 |
| Mechanic side shift | S |
| Hydraulic side shift | O |
| Hydraulic system (tank, pump, max. valve, 3-way valve, filter) | S |
| Hydraulic oil cooling radiator | S |
| Swing disk with blades Ø 45/55 cm | O |
| Rake | O |
| Angle gear positioned low with freewheel | O |
| Angle gear 540 revs/min-1 with freewheel | S |
| Angle gear 1,000 revs/min-1 with freewheel | O |
| Rear rake | n.d. |
| Side runners adjustable in height | O |
| Herbymulching: 100 lt herbicide tank with 12V pump | O |
| Herbymulching: 200 lt herbicide tank with 12V pump | O |
| Double sided reversible blades, series Y | O |
| Front version for front PTO 540/1.000 revs/min-1 | n.d. |
| Komby: version for front and rear PTO 540/1.000 revs/min with gearbox with automatic inverter and double freewheel for reversible tractors | n.d. |
| Agrifruit: version with opening on the rear | n.d. |
| Peso mazza | kg 1,85 |
| Overall size - Length with closed swing disk | cm 178 |
| Weight (standard version) | kg 830 |
O=Optional - nd=Not available - S=Standard
Download pdf CACH 162
| Working width with swing disk D.45 cm | cm 255 |
| Working width with swing disk D.55 cm | cm 275 |
| Working width with shoot-remover 42 cm | cm 250 |
| Number of hammers | 20 |
| Number of blades | 2 |
| Maximum cutting diameter (standard machine) | 5-8 (6-8) |
| 3 point linkage ISO | I/II |
| Number of belts | 4 |
| Diameter of height adjustable roller | cm 159 |
| Side shift from middle of tractor with swing disk D.45 cm | cm 175 |
| Side shift from middle of tractor with swing disk D.55 cm | cm 185 |
| HP | CV 40 |
| Mechanic side shift | S |
| Hydraulic side shift | O |
| Hydraulic system (tank, pump, max. valve, 3-way valve, filter) | S |
| Hydraulic oil cooling radiator | S |
| Swing disk with blades Ø 45/55 cm | O |
| Rake | O |
| Angle gear positioned low with freewheel | O |
| Angle gear 540 revs/min-1 with freewheel | S |
| Angle gear 1,000 revs/min-1 with freewheel | O |
| Rear rake | n.d. |
| Side runners adjustable in height | O |
| Herbymulching: 100 lt herbicide tank with 12V pump | O |
| Herbymulching: 200 lt herbicide tank with 12V pump | O |
| Double sided reversible blades, series Y | O |
| Front version for front PTO 540/1.000 revs/min-1 | n.d. |
| Komby: version for front and rear PTO 540/1.000 revs/min with gearbox with automatic inverter and double freewheel for reversible tractors | n.d. |
| Agrifruit: version with opening on the rear | n.d. |
| Peso mazza | kg 1,5 |
| Overall size - Length with closed swing disk | cm 193 |
| Weight (standard version) | kg 880 |
O=Optional - nd=Not available - S=Standard
Download pdf CA 182
| Working width with swing disk D.45 cm | cm 255 |
| Working width with swing disk D.55 cm | cm 275 |
| Working width with shoot-remover 42 cm | cm 250 |
| Number of hammers | 20 |
| Number of blades | 2 |
| Maximum cutting diameter (standard machine) | 5-8 (6-8) |
| 3 point linkage ISO | I/II |
| Number of belts | 4 |
| Diameter of height adjustable roller | cm 159 |
| Side shift from middle of tractor with swing disk D.45 cm | cm 175 |
| Side shift from middle of tractor with swing disk D.55 cm | cm 185 |
| HP | CV 40 |
| Mechanic side shift | S |
| Hydraulic side shift | O |
| Hydraulic system (tank, pump, max. valve, 3-way valve, filter) | S |
| Hydraulic oil cooling radiator | S |
| Swing disk with blades Ø 45/55 cm | O |
| Rake | O |
| Angle gear positioned low with freewheel | O |
| Angle gear 540 revs/min-1 with freewheel | S |
| Angle gear 1,000 revs/min-1 with freewheel | O |
| Rear rake | n.d. |
| Side runners adjustable in height | O |
| Herbymulching: 100 lt herbicide tank with 12V pump | O |
| Herbymulching: 200 lt herbicide tank with 12V pump | O |
| Double sided reversible blades, series Y | O |
| Front version for front PTO 540/1.000 revs/min-1 | n.d. |
| Komby: version for front and rear PTO 540/1.000 revs/min with gearbox with automatic inverter and double freewheel for reversible tractors | n.d. |
| Agrifruit: version with opening on the rear | n.d. |
| Peso mazza | kg 1,85 |
| Overall size - Length with closed swing disk | cm 193 |
| Weight (standard version) | kg 880 |
O=Optional - nd=Not available - S=Standard
Download pdf CACH 182
| Working width with swing disk D.45 cm | cm 280 |
| Working width with swing disk D.55 cm | cm 300 |
| Working width with shoot-remover 42 cm | cm 275 |
| Number of hammers | 24 |
| Number of blades | 2 |
| Maximum cutting diameter (standard machine) | 5-8 (6-8) |
| 3 point linkage ISO | I/II |
| Number of belts | 4 |
| Diameter of height adjustable roller | cm 159 |
| Side shift from middle of tractor with swing disk D.45 cm | cm 202 |
| Side shift from middle of tractor with swing disk D.55 cm | cm 212 |
| HP | CV 45 |
| Mechanic side shift | S |
| Hydraulic side shift | O |
| Hydraulic system (tank, pump, max. valve, 3-way valve, filter) | S |
| Hydraulic oil cooling radiator | S |
| Swing disk with blades Ø 45/55 cm | O |
| Rake | O |
| Angle gear positioned low with freewheel | O |
| Angle gear 540 revs/min-1 with freewheel | S |
| Angle gear 1,000 revs/min-1 with freewheel | O |
| Rear rake | n.d. |
| Side runners adjustable in height | O |
| Herbymulching: 100 lt herbicide tank with 12V pump | O |
| Herbymulching: 200 lt herbicide tank with 12V pump | O |
| Double sided reversible blades, series Y | O |
| Front version for front PTO 540/1.000 revs/min-1 | n.d. |
| Komby: version for front and rear PTO 540/1.000 revs/min with gearbox with automatic inverter and double freewheel for reversible tractors | n.d. |
| Agrifruit: version with opening on the rear | n.d. |
| Peso mazza | kg 1,5 |
| Overall size - Length with closed swing disk | cm 222 |
| Weight (standard version) | kg 930 |
O=Optional - nd=Not available - S=Standard
Download pdf CA 202
| Working width with swing disk D.45 cm | cm 280 |
| Working width with swing disk D.55 cm | cm 300 |
| Working width with shoot-remover 42 cm | cm 275 |
| Number of hammers | 24 |
| Number of blades | 2 |
| Maximum cutting diameter (standard machine) | 5-8 (6-8) |
| 3 point linkage ISO | I/II |
| Number of belts | 4 |
| Diameter of height adjustable roller | cm 159 |
| Side shift from middle of tractor with swing disk D.45 cm | cm 202 |
| Side shift from middle of tractor with swing disk D.55 cm | cm 212 |
| HP | CV 45 |
| Mechanic side shift | S |
| Hydraulic side shift | O |
| Hydraulic system (tank, pump, max. valve, 3-way valve, filter) | S |
| Hydraulic oil cooling radiator | S |
| Swing disk with blades Ø 45/55 cm | O |
| Rake | O |
| Angle gear positioned low with freewheel | O |
| Angle gear 540 revs/min-1 with freewheel | S |
| Angle gear 1,000 revs/min-1 with freewheel | O |
| Rear rake | n.d. |
| Side runners adjustable in height | O |
| Herbymulching: 100 lt herbicide tank with 12V pump | O |
| Herbymulching: 200 lt herbicide tank with 12V pump | O |
| Double sided reversible blades, series Y | O |
| Front version for front PTO 540/1.000 revs/min-1 | n.d. |
| Komby: version for front and rear PTO 540/1.000 revs/min with gearbox with automatic inverter and double freewheel for reversible tractors | n.d. |
| Agrifruit: version with opening on the rear | n.d. |
| Peso mazza | kg 1,85 |
| Overall size - Length with closed swing disk | cm 222 |
| Weight (standard version) | kg 930 |
O=Optional - nd=Not available - S=Standard
Download pdf CACH 202
| Working width with swing disk D.45 cm | cm 300 |
| Working width with swing disk D.55 cm | cm 320 |
| Working width with shoot-remover 42 cm | cm 295 |
| Number of hammers | 24 |
| Number of blades | 2 |
| Maximum cutting diameter (standard machine) | 5-8 (6-8) |
| 3 point linkage ISO | II |
| Number of belts | 5 |
| Diameter of height adjustable roller | cm 159 |
| Side shift from middle of tractor with swing disk D.45 cm | cm 212 |
| Side shift from middle of tractor with swing disk D.55 cm | cm 222 |
| HP | CV 50 |
| Mechanic side shift | S |
| Hydraulic side shift | O |
| Hydraulic system (tank, pump, max. valve, 3-way valve, filter) | S |
| Hydraulic oil cooling radiator | S |
| Swing disk with blades Ø 45/55 cm | O |
| Rake | O |
| Angle gear positioned low with freewheel | O |
| Angle gear 540 revs/min-1 with freewheel | S |
| Angle gear 1,000 revs/min-1 with freewheel | O |
| Rear rake | n.d. |
| Side runners adjustable in height | O |
| Herbymulching: 100 lt herbicide tank with 12V pump | O |
| Herbymulching: 200 lt herbicide tank with 12V pump | O |
| Double sided reversible blades, series Y | O |
| Front version for front PTO 540/1.000 revs/min-1 | n.d. |
| Komby: version for front and rear PTO 540/1.000 revs/min with gearbox with automatic inverter and double freewheel for reversible tractors | n.d. |
| Agrifruit: version with opening on the rear | n.d. |
| Peso mazza | kg 1,5 |
| Overall size - Length with closed swing disk | cm 242 |
| Weight (standard version) | kg 1020 |
O=Optional - nd=Not available - S=Standard
Download pdf CA 222
| Working width with swing disk D.45 cm | cm 300 |
| Working width with swing disk D.55 cm | cm 320 |
| Working width with shoot-remover 42 cm | cm 295 |
| Number of hammers | 24 |
| Number of blades | 2 |
| Maximum cutting diameter (standard machine) | 5-8 (6-8) |
| 3 point linkage ISO | II |
| Number of belts | 5 |
| Diameter of height adjustable roller | cm 159 |
| Side shift from middle of tractor with swing disk D.45 cm | cm 212 |
| Side shift from middle of tractor with swing disk D.55 cm | cm 222 |
| HP | CV 50 |
| Mechanic side shift | S |
| Hydraulic side shift | O |
| Hydraulic system (tank, pump, max. valve, 3-way valve, filter) | S |
| Hydraulic oil cooling radiator | S |
| Swing disk with blades Ø 45/55 cm | O |
| Rake | O |
| Angle gear positioned low with freewheel | O |
| Angle gear 540 revs/min-1 with freewheel | S |
| Angle gear 1,000 revs/min-1 with freewheel | O |
| Rear rake | n.d. |
| Side runners adjustable in height | O |
| Herbymulching: 100 lt herbicide tank with 12V pump | O |
| Herbymulching: 200 lt herbicide tank with 12V pump | O |
| Double sided reversible blades, series Y | O |
| Front version for front PTO 540/1.000 revs/min-1 | n.d. |
| Komby: version for front and rear PTO 540/1.000 revs/min with gearbox with automatic inverter and double freewheel for reversible tractors | n.d. |
| Agrifruit: version with opening on the rear | n.d. |
| Peso mazza | kg 1,85 |
| Overall size - Length with closed swing disk | cm 242 |
| Weight (standard version) | kg 1020 |
O=Optional - nd=Not available - S=Standard
