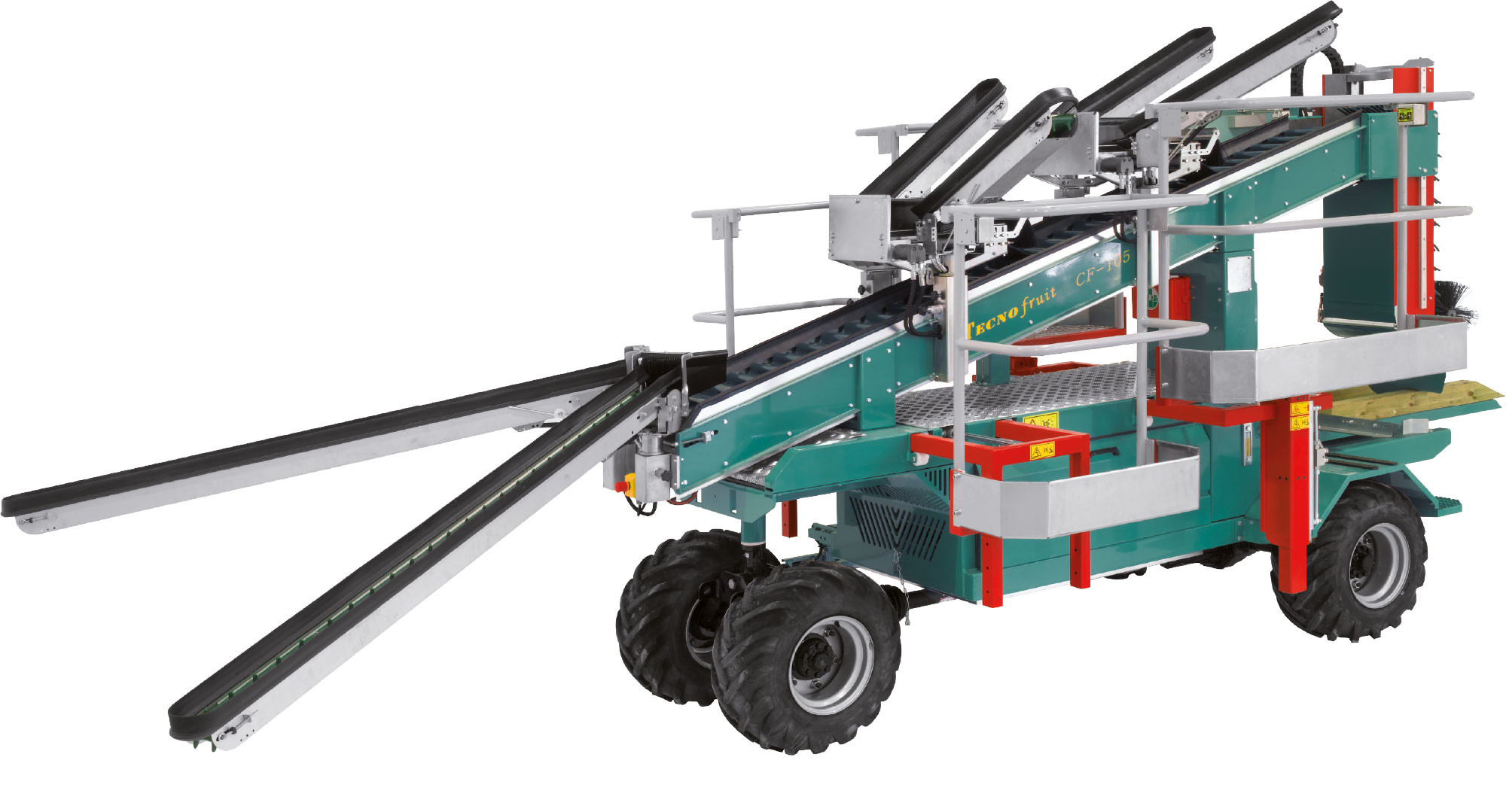

Tecnofruit CF-105
Compact machine for plants with 3.00 to 3.90 m inter-row and maximum height of 3.60 m of the plant. The rich standard equipment and a complete range of accessories allow customizing the machine according to the needs of modern fruit farmers. Equipped with a reliable 3-cylinder diesel engine that allows low fuel consumption and emissions according to the latest enviromental regulation.
The 4 side platforms (1.25 x 0.36 m rear platforms - 0.80 x 0.36 m front platforms) allow 3 levels of harvesting in a very compact machine.
Up to six people can work easily without mpediments while guaranteeing maximum ergonomics.
Optionally it is possible to choose an automatic trailer (the unloading of filled containers is carried out on the trailer) or a simple empty bin-trailer
(the unloading of filled containers is carried out on the ground), particularly suitable in case of very narrow plants and with very short rows. Furthermore, an optional air compressor is also available for 4/5 shears.
| Engine | Kubota 3 cyl |
| Type | Diesel 18.5 Kw/ 24,8 hp |
| Front wheels | 26x12.00-12” 8 pr |
| Rear wheels | 26x12.00-12” 8 pr |
| Service brake | - |
| Emergency brake/Parking brake | Hydraulic negative |
| Diesel tank capacity | lt 40 |
| Hydraulic oil tank capacity | lt 90 |
| Aux power | 12 V – 15 A |
| Speed | 0-8 km/h |
| Speed range | 2 + 2 con/mit inversor |
| Transmission | Hydrostatic |
| Steering control | Joystick |

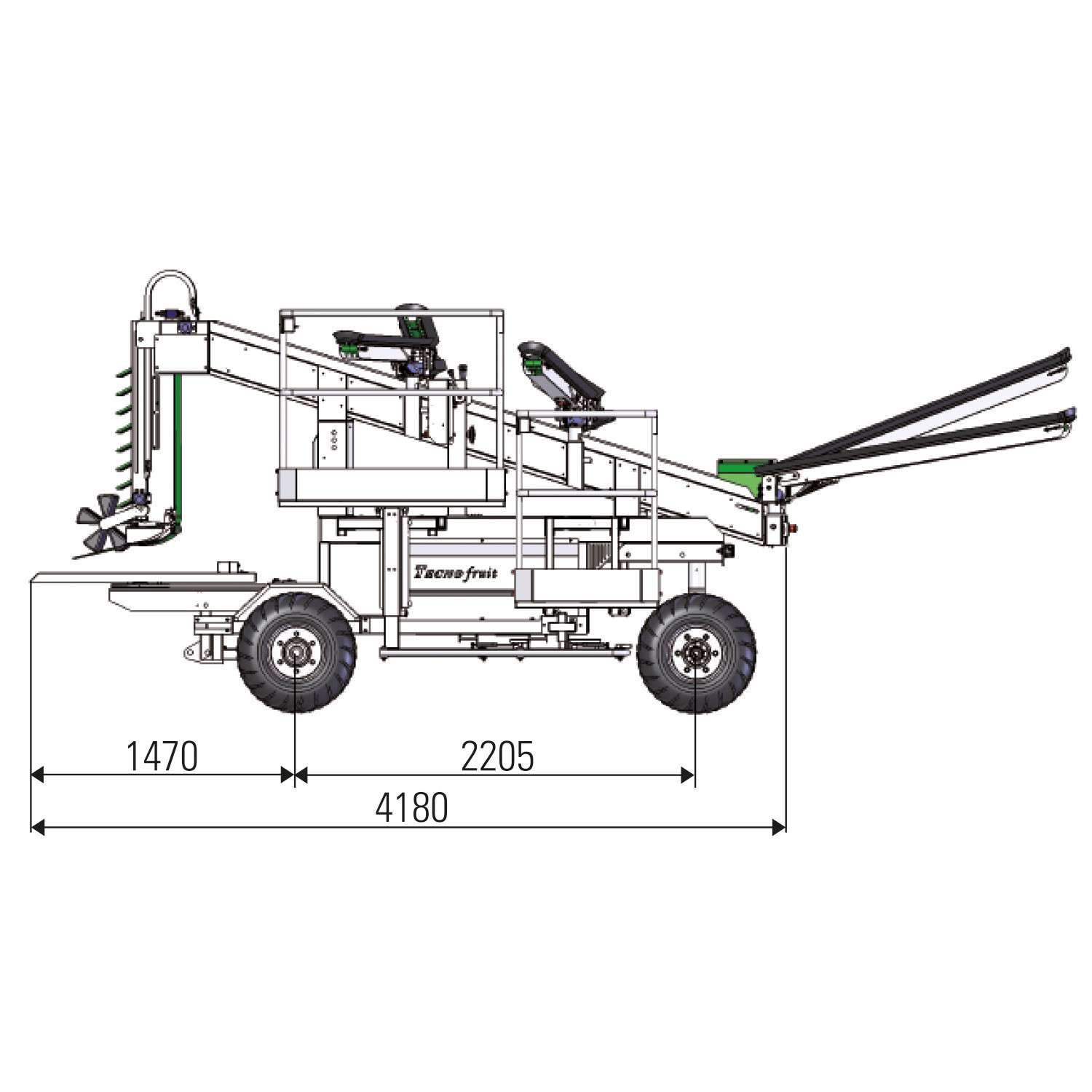

| Lenght (without bins trailer) | mm 4180 |

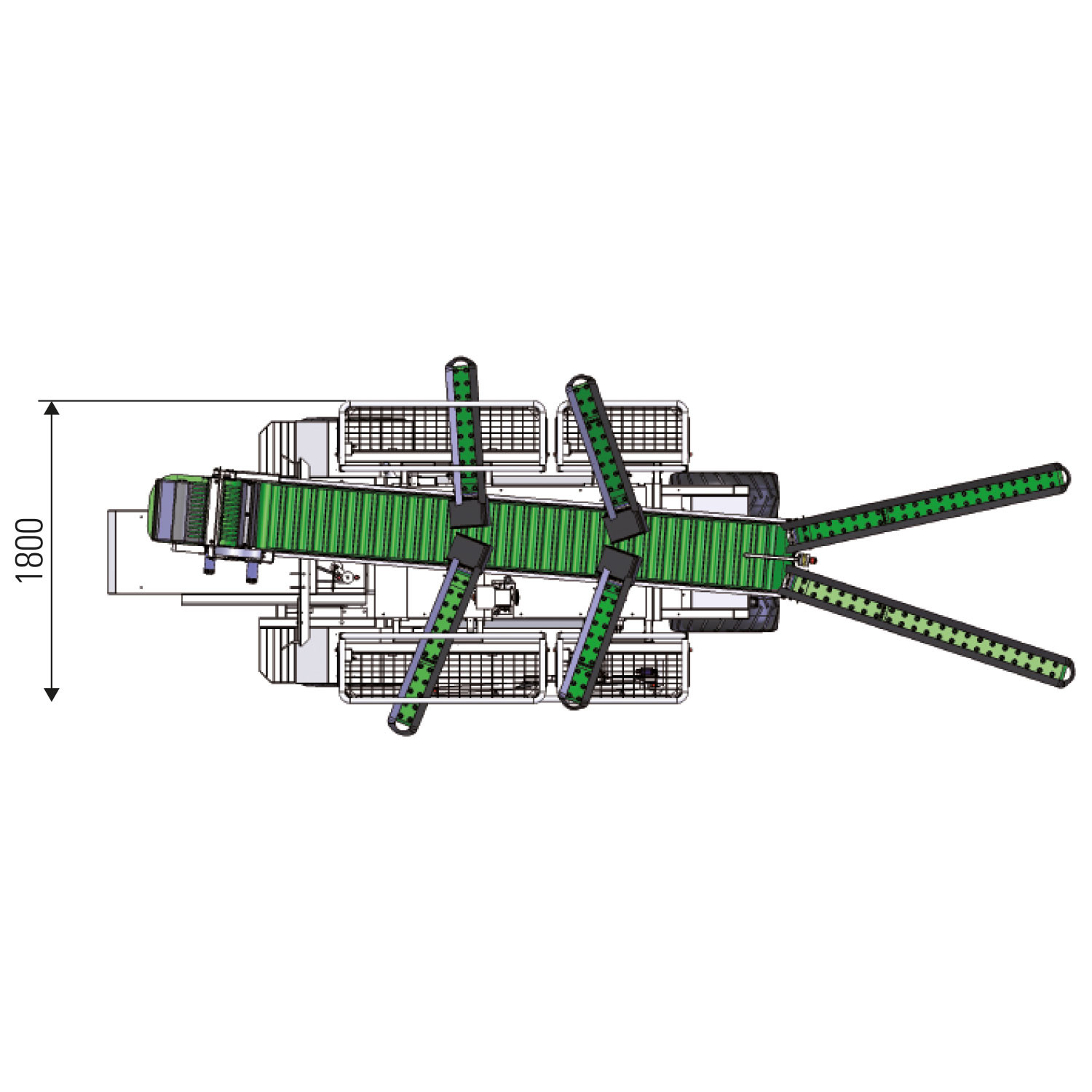

| Width (min/max) | mm 1800 / 3000 |

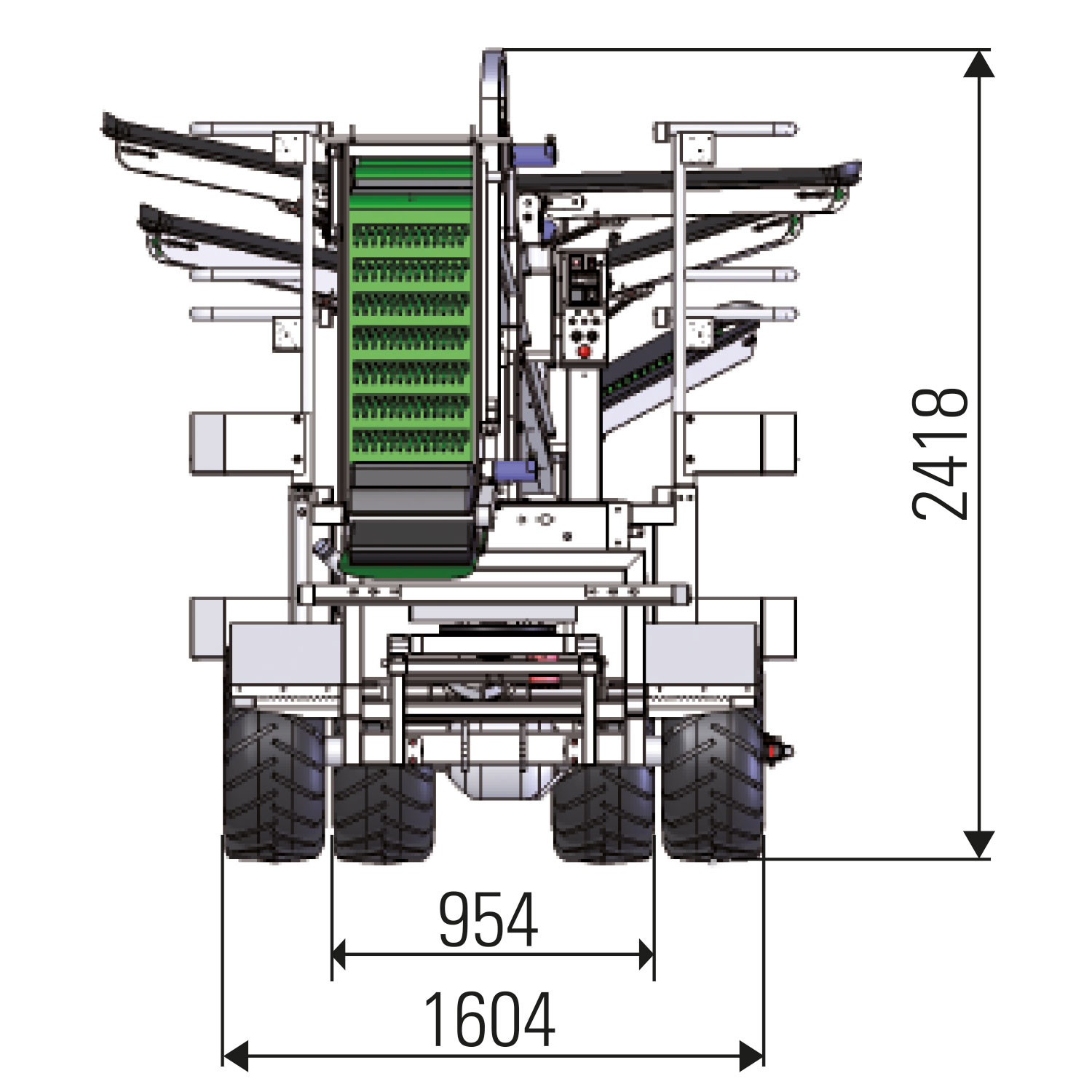

| Height (min/max) | mm 2418 / 2910 |
| Wheel base | mm 2205 |
| Ground clearance mm | mm 170 |
| Tourning radius | m 3,80 |
| Weight | kg 2060 |
O=Optional - nd=Not available - S=Standard
| 4 side platforms 1,38x0,40 m | S |
| 2 side platforms 1,25x0,36 m and 2 side platforms 0,80x0,36 m | - |
| Horizontal and vertical Hydraulic adjustment of rear platforms | S |
| Horizontal hydraulic adjustment of front platforms | S |
| Remote control of platforms (433Mhz) | S |
| Automatic bins trailer | O |
| Bins trailer with 4 wheels with bins caliper brake | O |
| 4 side picking belts | S |
| 6 side picking belts | O |
| Central conveyor belt | O |
| Rear-wheel drive with self-locking differential | O |
| 4 wheel drive | O |
| Automatic steering with ultrasound system | O |
| Hydraulic steering with Joystick | S |
| Additional Joystick | O |
| Industry fruit container | O |
| Front draw bar | O |
| 480 lt external air compressor | - |
| Pneumatic shears and/or pneumatic chainsaw | O |
| Negative parking and emergency brake with automatic operation | S |
| Hail net platform width 1,80 - 3,30 m; H=2,95 m; Depth 1,50 m | O |
| Work lights | O |
| Unloading of full bins on the ground and on the trailer | O |
| Bins table kit and special lift for automatic trailer for oversize bins (max 1,60x1,10 m) | O |
| Wooden guide profiles for turntable for plastic bins | O |
| Low filler (for low anti-hail systems) including tires 23.00 - 10.50 - 12” | O |
O=Optional - nd=Not available - S=Standard
