HM

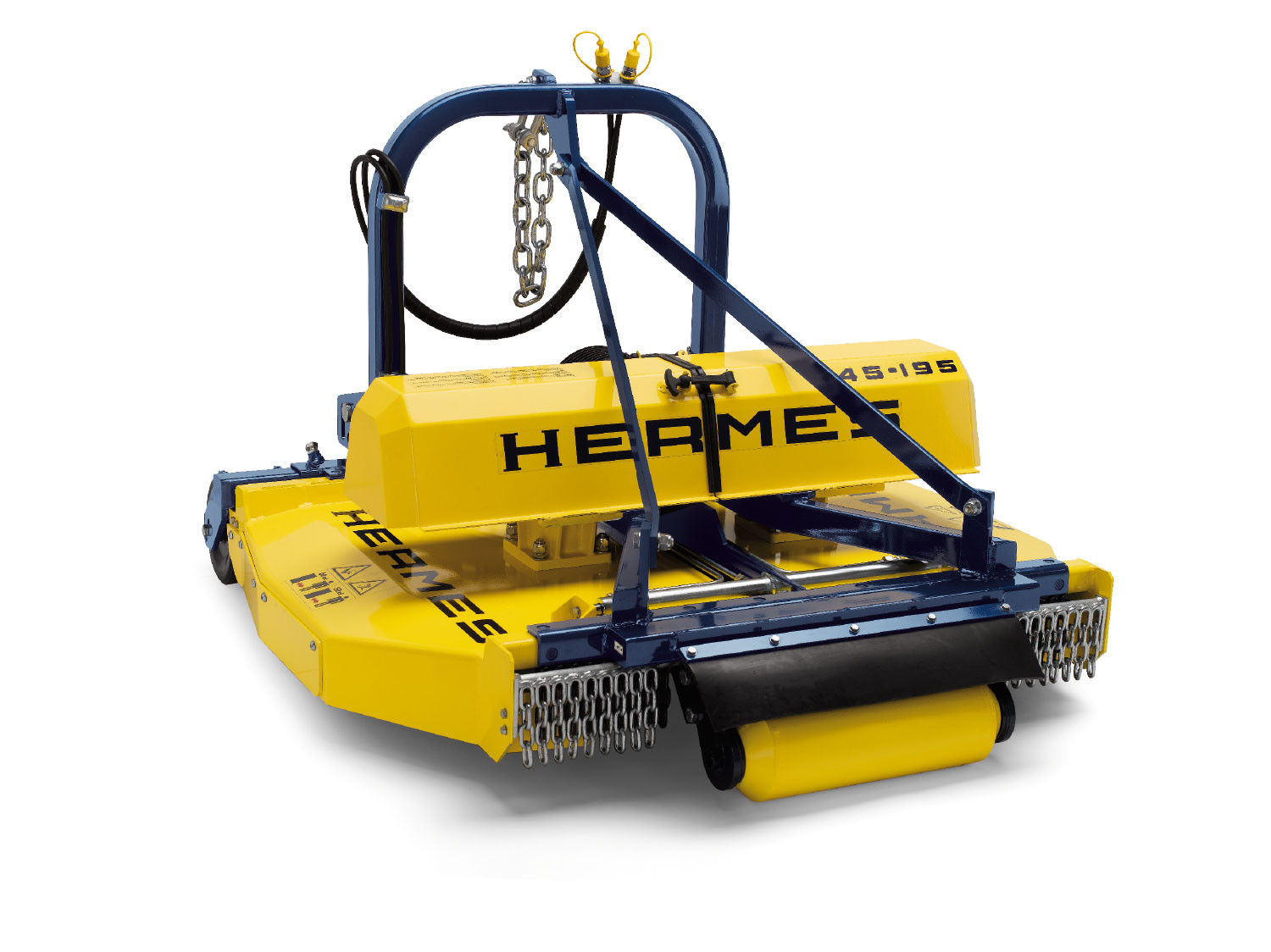

Hermes Mulching Machine
Fisarmonica
What makes these machines so efficient is the fact that they are easy and inexpensive to maintain: the time and operations required for their ordinary maintenance are reduced by the fact that they are solidly and simply built. Large firms that have many machines particularly appreciate this aspect. Fisarmonica is the ideal grass cutting machine. Its cutting system and flexibility is perfectly suited to today’s modern and efficient way of maintaining grass surfaces
| Minimum working width | cm 125 |
| Maximum working width | cm 175 |
| Side shift | n.d. |
| 3 point linkage ISO | I/II |
| Number of movable blades | 2 |
| HP | CV 20 |
| Number of transfer cases | 3 |
| Kombi: version for front and rear PTO 540 revs/min-1 | O |
| Kombi: version for front and rear PTO 1.000 revs/min-1 | O |
| Rear roller with adjustable height, D.159 mm | S |
| Fixed front wheels with adjustable height and width | S |
| Pivoting front wheels with adjustable height and width | O |
| Simultaneous hydraulic regulation of lateral wings | S |
| Independent hydraulic regulation of lateral wings | O |
| Herbymulching: 100 lt herbicide tank with 12V pump | O |
| Herbymulching: 200 lt herbicide tank with 12V pump | n.d. |
| Overall size - Length with closed swing disk | cm 130 |
| Weight (standard version) | kg 450 |
| Peso (versione Kombi) | kg 490 |
O=Optional - nd=Not available - S=Standard
Download pdf FI 125
| Minimum working width | cm 145 |
| Maximum working width | cm 190 |
| Side shift | n.d. |
| 3 point linkage ISO | I/II |
| Number of movable blades | 2 |
| HP | CV 23 |
| Number of transfer cases | 3 |
| Kombi: version for front and rear PTO 540 revs/min-1 | O |
| Kombi: version for front and rear PTO 1.000 revs/min-1 | O |
| Rear roller with adjustable height, D.159 mm | S |
| Fixed front wheels with adjustable height and width | S |
| Pivoting front wheels with adjustable height and width | O |
| Simultaneous hydraulic regulation of lateral wings | S |
| Independent hydraulic regulation of lateral wings | O |
| Herbymulching: 100 lt herbicide tank with 12V pump | O |
| Herbymulching: 200 lt herbicide tank with 12V pump | n.d. |
| Overall size - Length with closed swing disk | cm 150 |
| Weight (standard version) | kg 500 |
| Peso (versione Kombi) | kg 540 |
O=Optional - nd=Not available - S=Standard
Download pdf FI 145
| Minimum working width | cm 160 |
| Maximum working width | cm 215 |
| Side shift | n.d. |
| 3 point linkage ISO | I/II |
| Number of movable blades | 2 |
| HP | CV 30 |
| Number of transfer cases | 3 |
| Kombi: version for front and rear PTO 540 revs/min-1 | O |
| Kombi: version for front and rear PTO 1.000 revs/min-1 | O |
| Rear roller with adjustable height, D.159 mm | S |
| Fixed front wheels with adjustable height and width | S |
| Pivoting front wheels with adjustable height and width | O |
| Simultaneous hydraulic regulation of lateral wings | S |
| Independent hydraulic regulation of lateral wings | O |
| Herbymulching: 100 lt herbicide tank with 12V pump | O |
| Herbymulching: 200 lt herbicide tank with 12V pump | O |
| Overall size - Length with closed swing disk | cm 165 |
| Weight (standard version) | kg 570 |
| Peso (versione Kombi) | kg 615 |
O=Optional - nd=Not available - S=Standard
Download pdf FI 160
| Minimum working width | cm 175 |
| Maximum working width | cm 234 |
| Side shift | n.d. |
| 3 point linkage ISO | I/II |
| Number of movable blades | 2 |
| HP | CV 35 |
| Number of transfer cases | 3 |
| Kombi: version for front and rear PTO 540 revs/min-1 | O |
| Kombi: version for front and rear PTO 1.000 revs/min-1 | O |
| Rear roller with adjustable height, D.159 mm | S |
| Fixed front wheels with adjustable height and width | S |
| Pivoting front wheels with adjustable height and width | O |
| Simultaneous hydraulic regulation of lateral wings | S |
| Independent hydraulic regulation of lateral wings | O |
| Herbymulching: 100 lt herbicide tank with 12V pump | O |
| Herbymulching: 200 lt herbicide tank with 12V pump | O |
| Overall size - Length with closed swing disk | cm 180 |
| Weight (standard version) | kg 620 |
| Peso (versione Kombi) | kg 665 |
O=Optional - nd=Not available - S=Standard
Download pdf FI 175
| Minimum working width | cm 235 |
| Maximum working width | cm 295 |
| Side shift | n.d. |
| 3 point linkage ISO | I/II |
| Number of movable blades | 2 |
| HP | CV 40 |
| Number of transfer cases | 3 |
| Kombi: version for front and rear PTO 540 revs/min-1 | O |
| Kombi: version for front and rear PTO 1.000 revs/min-1 | O |
| Rear roller with adjustable height, D.159 mm | S |
| Fixed front wheels with adjustable height and width | S |
| Pivoting front wheels with adjustable height and width | O |
| Simultaneous hydraulic regulation of lateral wings | S |
| Independent hydraulic regulation of lateral wings | O |
| Herbymulching: 100 lt herbicide tank with 12V pump | O |
| Herbymulching: 200 lt herbicide tank with 12V pump | O |
| Overall size - Length with closed swing disk | cm 243 |
| Weight (standard version) | kg 990 |
O=Optional - nd=Not available - S=Standard
